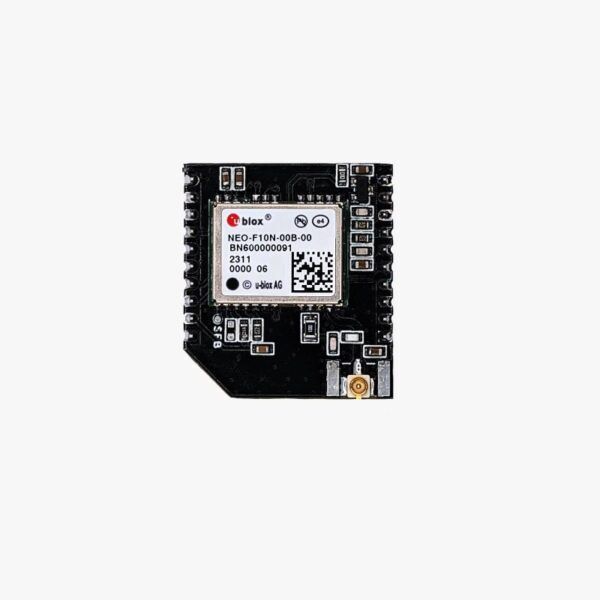

simpleGNSS Micro with u-blox F10

Units	Price per unit
<50	76,00€
>=50	Contact us for special pricing
>500	Contact us for special pricing

Units

Price per unit

<50

76,00€

>=50

Contact us for special pricing

>500

Contact us for special pricing

Let simpleGNSS Micro accelerate your GNSS project thanks to its easy to integrate footprint, integrated RF connector & high availability. With u-blox NEO-F10 module inside. We take care of the RF design and complex module integration so you can focus on your PCB design and the application.

Smallest Form Factor
Many NEO-F10 pins available
Re-usable: if you do a new PCB you can un-mount from your previous version the expensive GPS!
Smaller PCB area needed: you can use the space below the module to place other components!
Easy to solder by hand or machine
No RF knowledge required, because all RF components are already inside: simply uFL for pigtail connection or long SMA for direct panel mount
Bulk pricing starting 50 units

Specification

NEO-F10N features

Sub meter level precision
- <1.5m in standalone mode
- <0.9m standalone with SBAS coverage
Update rate
- Default: 1Hz
- With maximum performance: up to 8Hz
- With reduced performance: up to 10Hz
Multi band: L1, L5 support
Multifrequency and Multiconstellation:
- GPS: L1C/A L5
- Galileo: E1-B/C E5a
- BeiDou: B1C B2I
- NavIC: SPS-L5
- QZSS: L1Sb
- SBAS: WAAS, EGNOS, MSAS, GAGAN and SouthPan
Start-up times:
- First position fix: 27 seconds (cold), 2 seconds (hot)
Operating temperature Range: -40 to +85deg
Documentation: RED, RoHS, UKCA
