AgOpenGPS All-in-One (AIO) Board – RTK Items Set (u-blox ZED-F9P)

SKU: AS-STARTKIT-AOGPS-AIOF9P-SMA-00

252,00

Availability: In stock

This product comes with 2 years worldwide warranty

This product has quantity discounts available:
Units Price per unit
<50
252,00
>=50 Contact us for special pricing
>500 Contact us for special pricing

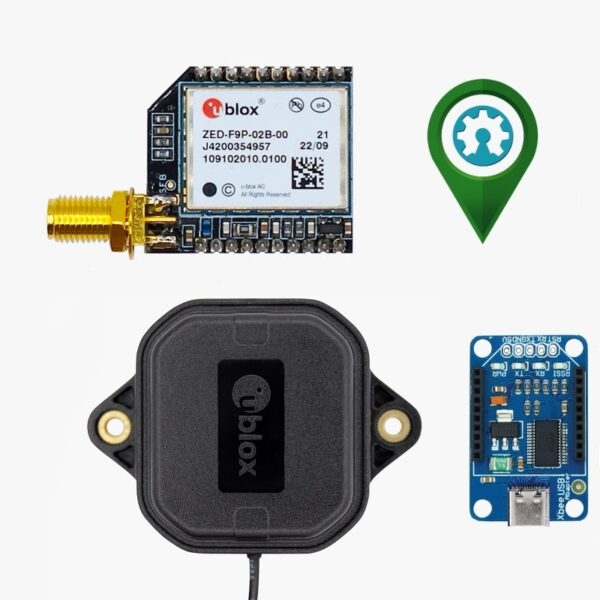

Includes:
– 1 simpleRTK2B Micro board with assembled u-blox ZED-F9P and SMA
– 1 ANN-MB dualband antenna
– 1 USB-C Carrier Board for XBee Plugins for easy configuration from PC

This is not the PCB Board, it’s the set of items related with the GPS position: RTK module and RTK antenna.

AS-STARTKIT-AOGPS-AIOF9P-SMA-00 ASB-STARTKIT-AOGPS-AIOF9P-SMA-00

Specifications

ANN-MB
Antenna element
  • Supported positioning signal bands:
    • GPS: L1, L2
    • GLONASS: G1, G2
    • BeiDou: B1, B2
    • Galileo: E1, E5b
    • QZSS: L1, L2
    • SBAS: WAAS, EGNOS, MSAS and GAGAN
  • Frequency range:
    • 1559-1606 MHz
    • 1197-1249 MHz
  • Polarization: RHCP
  • Peak gain: 2.0dBi (without ground plane)
  • Axial Ratio @ zenith: <3dB
  • Azimuth Coverage: 360 degrees
  • Impedance: 50 ohm
Electrical
  • Supply voltage: 3-5V
  • Typical supply current @ 3V: 15mA
  • Average LNA gain: 28dB
  • Maximum Noise Figure: 3.2dB
  • Maximum VSWR: 2
Mechanical
  • Maximum length: 82mm
  • Weight: 173g
  • Mounting style: magnetic base or 2x4.5mm holes
  • Cable length: 5 meters
  • Connector: SMA male
Environmental
  • Operating Temperature: -40 to +85°C
  • Storage Temperature: -40 to +85°C
  • IP Rating: IP67
  • RoHS: Yes
ZED-F9P features
  • Centimeter level precision
    • <1cm with a base station up to 35km
    • <1cm with NTRIP up to 35km
    • <4cm with SSR corrections
    • <1.5m in standalone mode
    • <0.9m standalone with SBAS coverage
  • Update rate
    • Default: 1Hz
    • With maximum performance: up to 10Hz
    • With reduced performance: up to 20Hz
  • Multi band: L1, L2 and E5b support
  • Multifrequency and Multiconstellation:
    • GPS: L1C/A L2C
    • GLONASS: L1OF L2OF
    • Galileo: E1-B/C E5b
    • BeiDou: B1I B2I
    • QZSS:  L1C/A L2C
    • SBAS: WAAS, EGNOS, MSAS, GAGAN and SouthPAN
  • Start-up times:
    • First position fix: 25 seconds (cold), 2 seconds (hot)
    • First RTK fix: 35 seconds (cold)
  • RAW data output in UBX format
  • Base and Rover functionality
  • Operating temperature Range: -40 to +85degC
  • Documentation: RED, RoHS
