The vision of ArduSimple is to make GNSS RTK technology simple, affordable and accessible to everyone with a series of starter kits, tutorials, engineering services and OEM products.

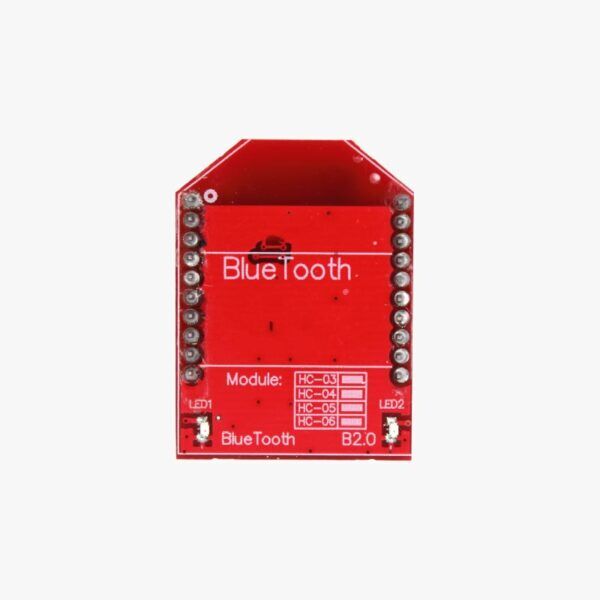

Bluetooth module
SKU: AS-XBEE-BT-2.4-INT-01
34,00€
Availability: In stock
This product comes with 2 years worldwide warranty
This product has quantity discounts available:
| Units | Price per unit |
|---|---|
| <50 | 34,00€ |
| >=50 | 22,00€ Click here for bulk orders |
| >500 | Contact us for special pricing |
Includes:
– Pre-configured Bluetooth radio module with soldered headers (XBee socket compatible)
With Ardusimple Bluetooth module, you will be able to provide low cost RTK technology to your smartphone or computer without cables.
Good to know:
– Compatible with all ArduSimple boards with XBee socket
– Default configuration is at 115’200bps and Bluetooth PIN: 1234
– Compatible with smartphones, computers and other devices that support Bluetooth 2.0
– You can customize the name of the Bluetooth device, by default is “RTK_GNSS_***”
– Not compatible with iOS device, for iOS devices we can propose the BT+BLE Bridge.
Product Change History:
– AS-XBEE-BT-2.4-INT-00: initial version at 38’400bps
– AS-XBEE-BT-2.4-INT-01: BT baudrate set at 115’200bps
Specifications
Interfaces- UART
- RS232 (requires accessory)
- Bluetooth V2.0
- Bluetooth SPP (Serial Port Profile)
- Voltage supply (VCC): 3.0 - 3.6V
- UART voltage: same as VCC
- Frequency: 2.4 GHz (2402 - 2480 MHz)
- Max output power: 10dBm
Documentation
Start here:
Datasheet- We didn't find time to create this 3D CAD model, contact us to request it
- Download Footprint
