The vision of ArduSimple is to make GNSS RTK technology simple, affordable and accessible to everyone with a series of starter kits, tutorials, engineering services and OEM products.
Micro u-blox ZED-X20P
SKU: AS-RTK-MICRO-X20P
From 224,00€
This product comes with 2 years worldwide warranty
This product has quantity discounts available:
| Units | Price per unit |
|---|---|
| <50 | 224,00€ |
| >=50 | Contact us for special pricing |
| >500 | Contact us for special pricing |
We get regular but very limited deliveries of u-blox ZED-X20P. If your order today we expect to ship your order on June 28th.
Includes:

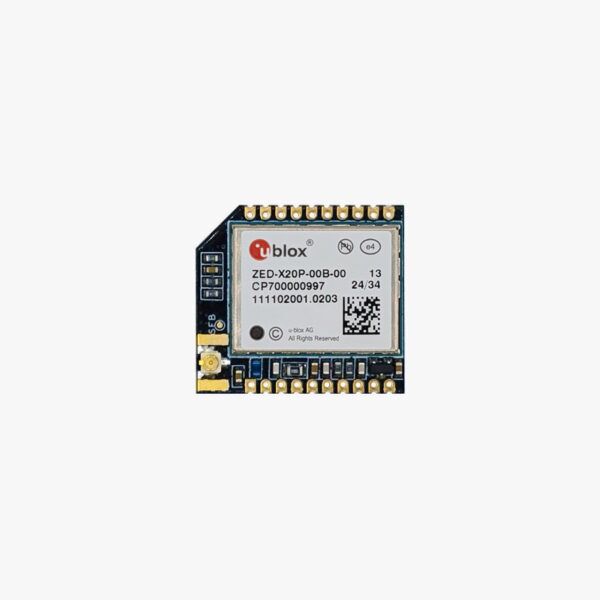

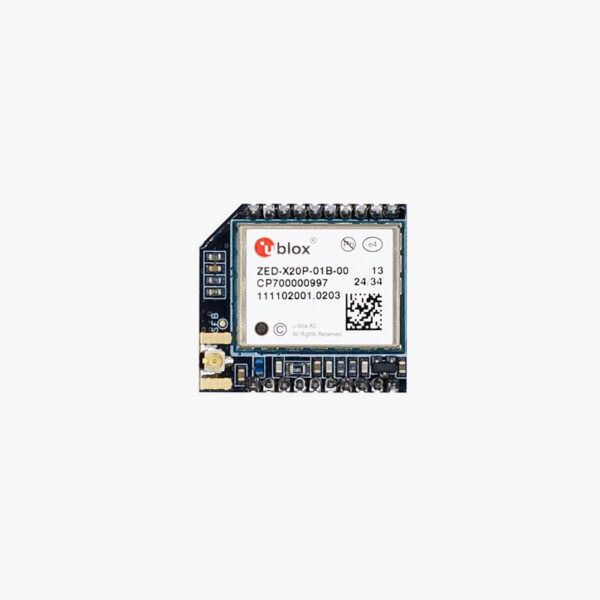

– 1 ArduSimple Micro board with u-blox ZED-X20P module
Let ArduSimple Micro u-blox ZED-X20P accelerate your RTK project thanks to its easy to integrate footprint, integrated RF connector & delivered to you in 2-4 business days. We take care of the RF design and complex module integration so you can focus on your PCB design and the application.
- Smallest Form Factor
- Many ZED-X20P pins available
- Compatible with many other modules from the ArduSimple Micro series
- Re-usable: if you do a new PCB you can un-mount from your previous version the expensive GPS!
- Smaller PCB area needed: you can use the space below the module to place other components!
- Easy to solder by hand or machine
- No RF knowledge required, because all RF components are already inside: simply uFL for pigtail connection or long SMA for direct panel mount
- Bulk pricing starting 50 units
Specifications
ZED-X20P features- Centimeter level precision:
- <1cm with a base station up to 35km
- <1cm with NTRIP up to 35km
- <4cm with SSR corrections
- <1.5m in standalone mode
- <0.9m standalone with SBAS coverage
- Update rate
- Default: 1Hz
- With maximum performance: up to 25Hz
- Multi band: L1, L2, L5 and L6 support
- Multifrequency and Multiconstellation:
- GPS: L1C/A L2C L5
- Galileo: E1-B/C E5a E6
- BeiDou: B1I B1C B2a B3I
- QZSS: L1C/A L2C/B L2C L5 L6
- Navic: SPS-L5
- SBAS: WAAS, EGNOS, MSAS, GAGAN and SouthPAN
- Start-up times:
- First position fix: 25 seconds (cold), 2 seconds (hot)
- Warm start: <10s
- First RTK fix: 35 seconds (cold)
- RAW data output in UBX format
- Base and Rover functionality
- Operating temperature Range: -40 to +85degC
- Certification: CE
- Documentation: RED, RoHS
Documentation
Start here:
Datasheet- Learn how to configure u-blox ZED-X20 boards
- We didn't find time to create this 3D CAD model, contact us to request it
