The vision of ArduSimple is to make GNSS RTK technology simple, affordable and accessible to everyone with a series of starter kits, tutorials, engineering services and OEM products.
mPCIe u-blox ZED-X20P
SKU: AS-RTK-MPCIE-X20P-L126-00
Original price was: 249,00€.224,00€Current price is: 224,00€.
Subcomponents in stock, assembly in progress
This product comes with 2 years worldwide warranty
This product has quantity discounts available:
| Units | Price per unit |
|---|---|
| <50 | 224,00€ |
| >=50 | Contact us for special pricing |
| >500 | Contact us for special pricing |
Order now and be the first one to test u-blox ZED-X20P. We will start shipping on April 30th
Includes:
– 1 mPCIe board with u-blox ZED-X20P

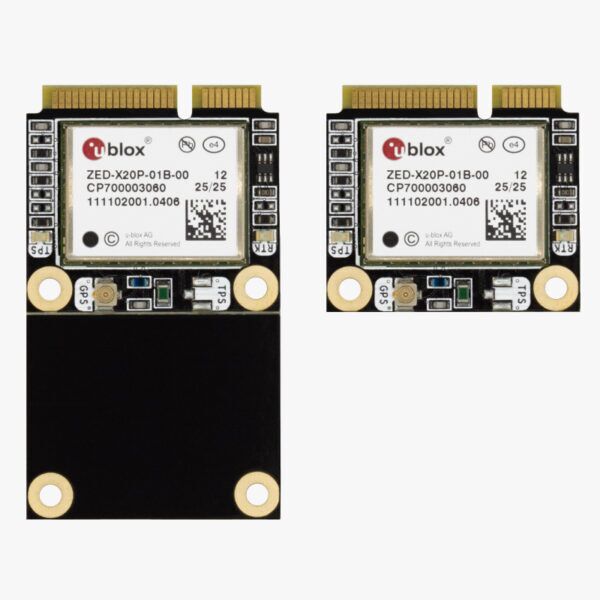

Compact pluggable Mini PCI Express card based on u-blox ZED-X20P.
Bring low cost high precision RTK GNSS positioning to your Mini PCI Express platforms thanks to ZED-X20P and this board fully compatible with MiniPCIe half-size and full-size sockets.
Good to know:
– The board by default is compatible with full size Mini PCI Express sockets, and it’s pre-cut so you can convert it yourself to Half Size Mini PCI Express size.

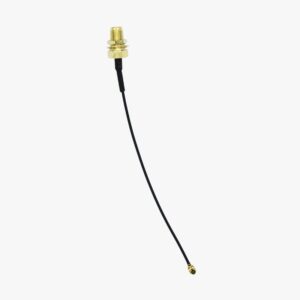

– You will need a uFL to SMA pigtail to connect it to our Multiband GPS/GNSS antennas.
– Bulk pricing starting 50 units
Specifications
ZED-X20P features- Centimeter level precision:
- <1cm with a base station up to 35km
- <1cm with NTRIP up to 35km
- <4cm with SSR corrections
- <1.5m in standalone mode
- <0.9m standalone with SBAS coverage
- Update rate
- Default: 1Hz
- With maximum performance: up to 25Hz
- Multi band: L1, L2, L5 and L6 support
- Multifrequency and Multiconstellation:
- GPS: L1C/A L2C L5
- Galileo: E1-B/C E5a E6
- BeiDou: B1I B1C B2a B3I
- QZSS: L1C/A L2C/B L2C L5 L6
- Navic: SPS-L5
- SBAS: WAAS, EGNOS, MSAS, GAGAN and SouthPAN
- Start-up times:
- First position fix: 25 seconds (cold), 2 seconds (hot)
- Warm start: <10s
- First RTK fix: 35 seconds (cold)
- RAW data output in UBX format
- Base and Rover functionality
- Operating temperature Range: -40 to +85degC
- Certification: CE
- Documentation: RED, RoHS
Documentation
Start here:
Datasheet- Learn how to configure u-blox ZED-X20 boards
- We didn't find time to create this 3D CAD model, contact us to request it
