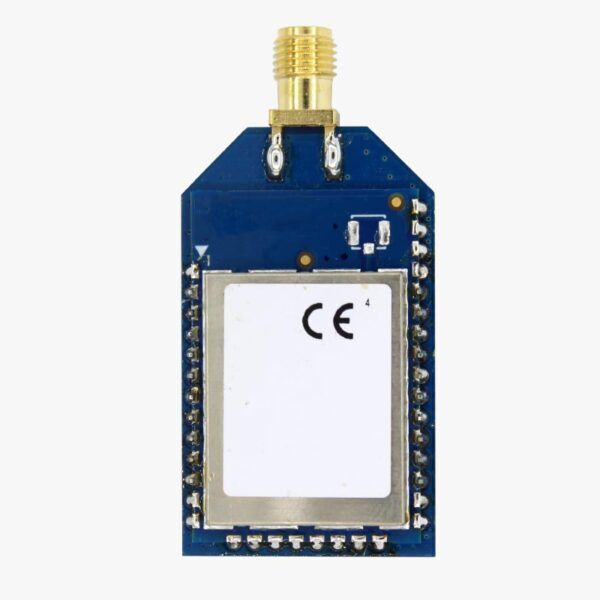

LR-top
Radio module Long Range (LR) dimensions
LR-XLR-bottom
pinout-LRXLR_radio-R00
LR-top
Radio module Long Range (LR) dimensions
LR-XLR-bottom
pinout-LRXLR_radio-R00

Radio module Long Range (LR)

SKU: AS-XBEE-LR
In stock!

101,00€

This product comes with 2 years worldwide warranty

In stock!

This interactive table will help you choose the right LR/XLR radio options, depending on the frequencies available in your country.
You can also check this map.

Choose your country/region:

Country/Region Free frequencies LR radio options XLR radio options
- - - - - -

After checking the frequencies in the interactive table don't forget to pick manually the preferred LR/XLR radio options in the above select box!

*We have created this table on a best effort basis but we are not responsible of possible mistakes or changes in spectrum legislation.
You can contact us if you find any error.

This product has quantity discounts available:
Units Price per unit
<50
101,00€
>=50 Contact us for special pricing
>500 Contact us for special pricing

Includes:
– 1 Long Range radio module
This product comes without antenna, remember to add our dipole antenna or vehicle mount antenna to the cart.

The Long Range version of our Radio Module. Based on Digi XBee SX series, but on through hole format and with SMA connector. With a configuration optimized for sending RTK corrections over the air.

With this radio module you will be able to send RTK corrections up to 10 km in both point-to-point and point-to-multipoint configurations. This distance will depend on the region of use, subject to local regulations.

Good to know:
– Compatible with all ArduSimple boards.
– This radio is included in our simpleRTK2B – Starter Kit LR.
– The radio is sent pre-configured at 115’200bps and will connect automatically to other LR radios from the same region.
– The radio is sent pre-configured at 20mW output power which is the maximum for this radio.
– The radio comes without antenna, remember to add our dipole antenna or vehicle mount antenna to the cart.

AS-XBEE-LR-EU-SMA-01 AS-XBEE-LR-NA-SMA-01 AS-XBEE-LR-AU-SMA-01

Specifications

InterfacesLR radio features
  • Communications: Bi-directional Point-to-Point or Unidirectional Point-to-Multipoint (unlimited rovers)
  • Antenna type: external passive
  • Antenna connector (radio side): SMA female
  • Frequency:
    • Europe: 863-870 MHz
    • North America: 902-907 + 915-927 MHz (configurable)
    • Australia: 915-927 MHz
    • New Zealand: 917-927 MHz
  • Output power: 20 mW (13 dBm)
  • Range in line of sight:
    • Urban: 2.5 km
    • Rural: 5 km
    • Rural with complete RF line of sight: 10 km
  • Operating temperature Range: -40 to +85deg
  • Documentation: RED, RoHS, FCC, IC, ACMA, RSM

Documentation

Start here:
  • Get started with the User Guide
  • Datasheet
Certifications:Related tutorials:
