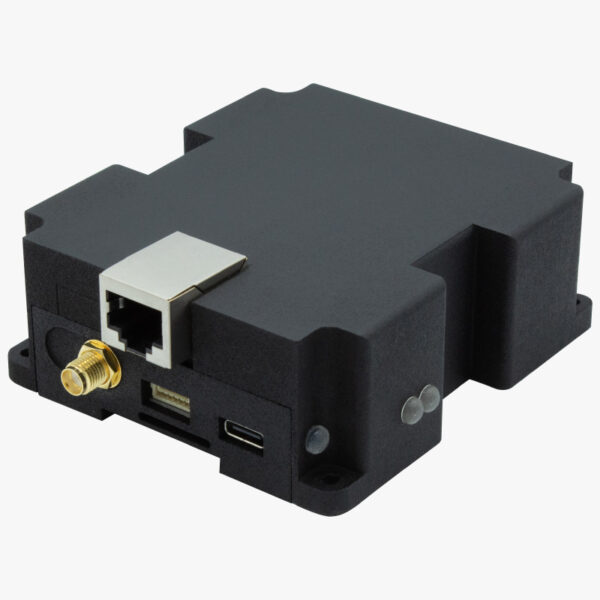

RTK Base Station

Specifications

• Millimeter level precision
  1. <1cm with a base station up to 35km
  2. <1cm with NTRIP up to 35km
  3. <1.2m in standalone mode
  4. <0.6m standalone with SBAS coverage
• Update rate
  1. Default: 1Hz
  2. With maximum performance: up to 100Hz
• Multi band: L1, L2 and L5 support, 448 hardware channels
• Multifrequency and Multiconstellation:
  1. GPS: L1C/A L1PY L2C L2P L5
  2. GLONASS: L1CA L2CA L2P L3 CDMA
  3. Galileo: E1 E5a E5b E5 AltBloc E6
  4. BeiDou: B1I B1C B2a B2I B3
  5. QZSS:  L1C/A L2C L5
  6. Navic: L5
  7. SBAS: WAAS, EGNOS, MSAS, GAGAN, SDCM (L1 L5)
• Start-up times:
  1. Cold start: <45s
  2. Warm start: <20s
  3. Re-acquisition: 1s
• Protocols:
  1. Septentrio Binary Format (SBF)
  2. NMEA 0183, v2.3, v3.03, v4.0
  3. RINEX v2.x, v3.x
  4. RTCM v2.x, v3.x (MSM included)
  5. CMR v2.0 (out/in), CMR+ (input only)
• Interfaces (check user guide to verify which are available):
  • USB
  • UART
  • XBee
  • Timepulse
  • Event
• Base and Rover functionality
• Operating temperature Range: -40 to +85deg
• Certification: CE, WEEE, ISO 9001-2015
• Documentation: RED, RoHS
