Septentrio MosaicHAT
SKU: AS-OPENHW-MOSAICHAT
From 648,00€
This product comes with 2 years worldwide warranty
This product has quantity discounts available:
| Units | Price per unit |
|---|---|
| <50 | 648,00€ |
| >=50 | Contact us for special pricing |
| >500 | Contact us for special pricing |
Includes:
– 1 Septentrio MosaicHAT board (Mosaic) manufactured by ArduSimple

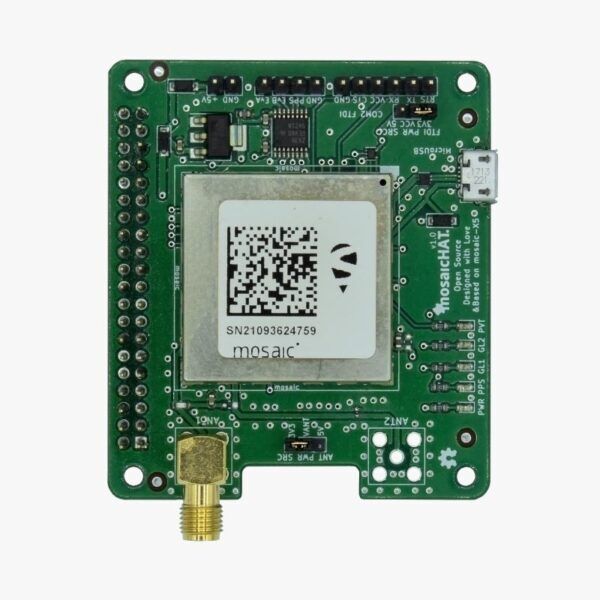

The mosaicHAT is an Open Source GPS/GNSS HW PCB HAT which integrates Septentrio’s Mosaic modules with basic communications and which can be stacked into a Raspberry Pi system.
ArduSimple manufactures the mosaicHAT receiver from Septentrio following the Open Source Hardware (OSHW) guidelines.
Good to know:
– This product is manufactured and sold by ArduSimple, but designed by Septentrio.
– This product is compatible but doesn’t include multiband GNSS antenna, which is necessary to use the product. Will not give good performance with a standard GNSS antenna, requires a multiband one.
Specifications
Mosaic-H features- Millimeter level precision
- <1cm with a base station up to 35km
- <1cm with NTRIP up to 35km
- <1.2m in standalone mode
- <0.6m standalone with SBAS coverage
- GNSS attitude accuracy
- 1m antenna separation: 0.15deg heading, 0.25deg pitch/roll
- 5m antenna separation: 0.03deg heading, 0.05deg pitch/roll
- Update rate
- Default: 1Hz
- Measurements only: up to 100Hz
- Standalone, SBAS, DGPS + attitude: up to 50Hz
- RTK+attitude: up to 20Hz
- Multi band: L1, L2 and E5b support, 448 hardware channels
- Multifrequency and Multiconstellation:
- GPS: L1 L2
- GLONASS: L1 L2
- Galileo: E1 E5b
- BeiDou: B1 B2
- QZSS: L1 L2
- SBAS: WAAS, EGNOS, MSAS, GAGAN, SDCM (L1)
- Start-up times:
- Cold start: <45s
- Warm start: <20s
- Re-acquisition: 1s
- Protocols:
- Septentrio Binary Format (SBF)
- NMEA 0183, v2.3, v3.03, v4.0
- RINEX v2.x, v3.x
- RTCM v2.x, v3.x (MSM included)
- CMR v2.0 (out/in), CMR+ (input only)
- Interfaces (check user guide to verify which are available):
- USB
- UART
- XBee
- Timepulse
- Event
- Base and Rover functionality
- Operating temperature Range: -40 to +85deg
- Certification: CE, WEEE, ISO 9001-2015
- Documentation: RED, RoHS
- Millimeter level precision
- <1cm with a base station up to 35km
- <1cm with NTRIP up to 35km
- <1.2m in standalone mode
- <0.6m standalone with SBAS coverage
- Update rate
- Default: 1Hz
- With maximum performance: up to 100Hz
- Multi band: L1, L2 and L5 support, 448 hardware channels
- Multifrequency and Multiconstellation:
- GPS: L1C/A L1PY L2C L2P L5
- GLONASS: L1CA L2CA L2P L3 CDMA
- Galileo: E1 E5a E5b E5 AltBloc E6
- BeiDou: B1I B1C B2a B2I B3
- QZSS: L1C/A L2C L5
- Navic: L5
- SBAS: WAAS, EGNOS, MSAS, GAGAN, SDCM (L1 L5)
- Start-up times:
- Cold start: <45s
- Warm start: <20s
- Re-acquisition: 1s
- Protocols:
- Septentrio Binary Format (SBF)
- NMEA 0183, v2.3, v3.03, v4.0
- RINEX v2.x, v3.x
- RTCM v2.x, v3.x (MSM included)
- CMR v2.0 (out/in), CMR+ (input only)
- Interfaces (check user guide to verify which are available):
- USB
- UART
- XBee
- Timepulse
- Event
- Base and Rover functionality
- Operating temperature Range: -40 to +85deg
- Certification: CE, WEEE, ISO 9001-2015
- Documentation: RED, RoHS
Documentation
Start here:- Get started with the User Guide
Datasheet- Learn how to configure Septentrio Mosaic boards
- We didn't find time to create this 3D CAD model, contact us to request it
