Serial Datalogger to microSD
SKU: AS-XBEE-LOG-MICROSD-01
49,00€
Availability: In stock
This product comes with 2 years worldwide warranty
This product has quantity discounts available:
| Units | Price per unit |
|---|---|
| <50 | 49,00€ |
| >=50 | Contact us for special pricing |
| >500 | Contact us for special pricing |

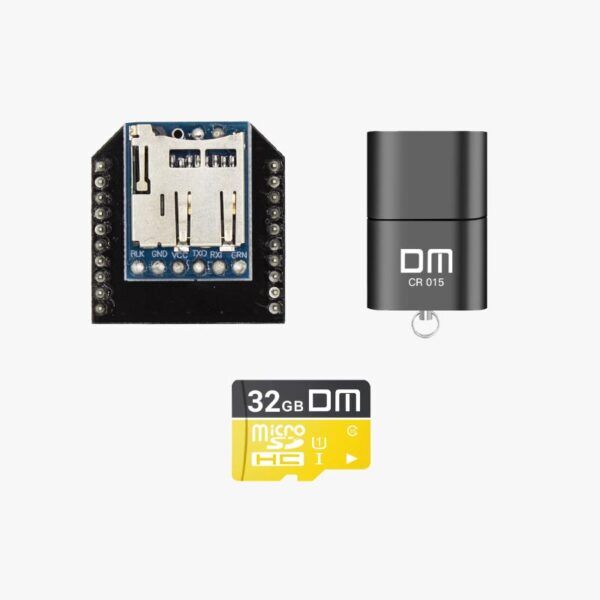

Includes:
– Pre-configured at 115’200bps Serial Datalogger to microSD card (XBee socket compatible)
– 32GB class 10 microSD card
– microSD card to USB reader
With Ardusimple Serial Datalogger, you will be able to store GPS data in a very simple way. Ideal for PPK, RTK and standalone applications.
Just configure the data you want to store at 115’200bps in the UART connected to the XBee socket. For example, this allows you to record GGA only at 100Hz
Good to know:
– It supports microSD cards up to 32GB (included)
– This product is compatible with all ArduSimple boards.
– This product is compatible with simpleRTK2B case but NOT with simpleRTK2Blite case.
Product Change History:
– AS-XBEE-LOG-MICROSD-00: initial version recording up to 57’600bps, pre-configured at 57’600bps
– AS-XBEE-LOG-MICROSD-01: baudrate increased to 115’200bpss, pre-configured at 115’200bps
Specifications
Hardware features:- Voltage supply: 2.7-3.6V
- Default baudrate: 115'200bps
- Maximum SD card size: 32GB
Documentation
Start here:
Datasheet- We didn't find time to create this 3D CAD model, contact us to request it
