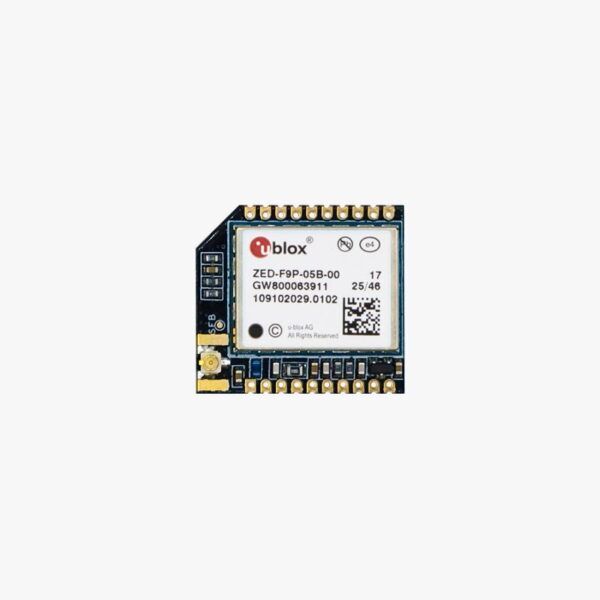

simpleRTK2B Micro
SKU: AS-RTK2B-MICRO-F9
From 199,00€
This product comes with 2 years worldwide warranty
This product has quantity discounts available:
| Units | Price per unit |
|---|---|
| <50 | 199,00€ |
| >=50 | 152,00€ Click here for bulk orders |
| >500 | Contact us for special pricing |
Includes:
– 1 simpleRTK2B Micro board
Let simpleRTK2B Micro accelerate your RTK project thanks to its easy to integrate footprint, integrated RF connector & high availability. With u-blox ZED-F9P and ZED-F9R products. We take care of the RF design and complex module integration so you can focus on your PCB design and the application.
- Smallest Form Factor
- Many ZED-F9P pins available
- Re-usable: if you do a new PCB you can un-mount from your previous version the expensive GPS!
- Smaller PCB area needed: you can use the space below the module to place other components!
- Easy to solder by hand or machine
- No RF knowledge required, because all RF components are already inside: simply uFL for pigtail connection or long SMA for direct panel mount
- Bulk pricing starting 50 units
Specifications
ZED-F9P features- Centimeter level precision
- <1cm with a base station up to 35km
- <1cm with NTRIP up to 35km
- <4cm with SSR corrections
- <1.5m in standalone mode
- <0.9m standalone with SBAS coverage
- Update rate
- Default: 1Hz
- With maximum performance: up to 10Hz
- With reduced performance: up to 20Hz
- Multi band: L1, L2 and E5b support
- Multifrequency and Multiconstellation:
- GPS: L1C/A L2C
- GLONASS: L1OF L2OF
- Galileo: E1-B/C E5b
- BeiDou: B1I B2I
- QZSS: L1C/A L2C
- SBAS: WAAS, EGNOS, MSAS, GAGAN and SouthPAN
- Start-up times:
- First position fix: 25 seconds (cold), 2 seconds (hot)
- First RTK fix: 35 seconds (cold)
- RAW data output in UBX format
- Base and Rover functionality
- Operating temperature Range: -40 to +85deg
- Documentation: RED, RoHS
ZED-F9R features
- Centimeter level precision
- <1cm with a base station up to 35km
- <1cm with NTRIP up to 35km
- <4cm with SSR corrections
- <1.5m in standalone mode
- <0.9m standalone with SBAS coverage
- Update rate
- Default: 1Hz
- Maximum GNSS update rate: 4Hz
- Maximum fusion update rate: 30Hz
- Multi band: L1, L2 and E5b support
- Multifrequency and Multiconstellation:
- GPS: L1C/A L2C
- GLONASS: L1OF L2OF
- Galileo: E1-B/C E5b
- BeiDou: B1I B2I
- QZSS: L1C/A L2C
- SBAS: WAAS, EGNOS, MSAS, GAGAN and SouthPAN
- Start-up times:
- First position fix: 25 seconds (cold), 2 seconds (hot)
- First RTK fix: 35 seconds (cold)
- Dynamic models: ground vehicle, slow-moving service robots and electric scooters (drones, boats and pedestrians not supported)
- RAW data output in UBX format
- No Base Station function, only RTK Rover
- Operating temperature Range: -40 to +85deg
- Documentation: RED, RoHS
Documentation
Start here:- Get started with the User Guide
Datasheet- Configuration files
- Download Footprint
