The vision of ArduSimple is to make GNSS RTK technology simple, affordable and accessible to everyone with a series of starter kits, tutorials, engineering services and OEM products.
Made in Europe
simpleRTK2B Budget
SKU: AS-RTK2B-F9P-L1L2
From 172,00€
This product comes with 2 years worldwide warranty
This product has quantity discounts available:
| Units | Price per unit |
|---|---|
| <50 | 172,00€ |
| >=50 | 156,52€ Click here for bulk orders |
| >500 | Contact us for special pricing |
Includes:

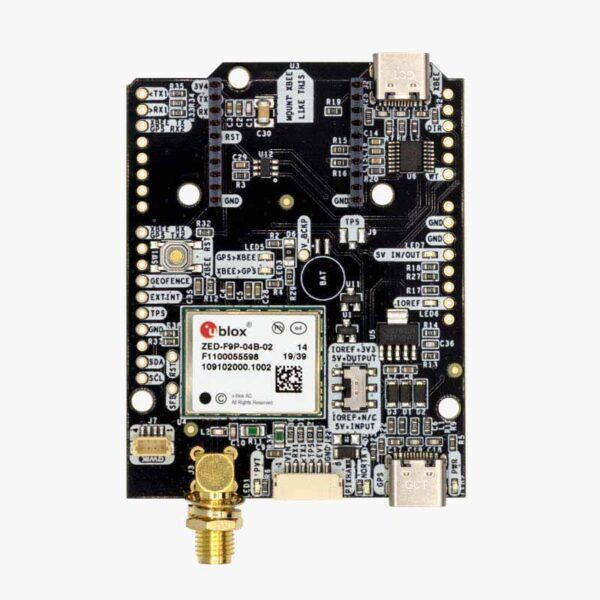

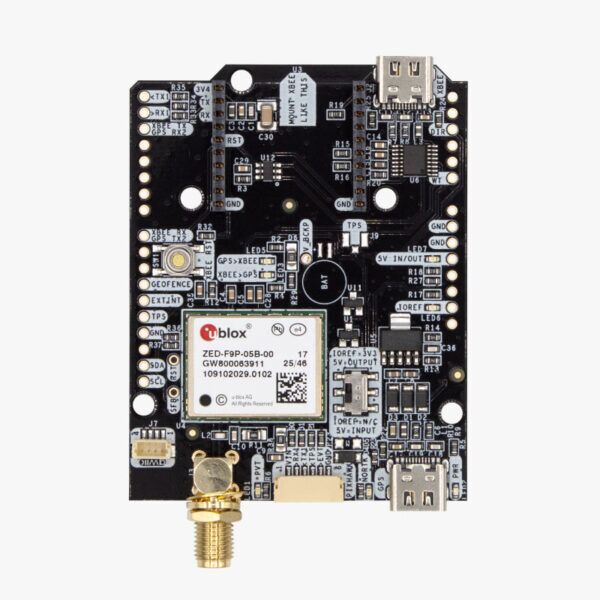

– 1 simpleRTK2B Budget board (ZED-F9P)
simpleRTK2B Budget is a standalone board that allows to evaluate dual band RTK GNSS technology including centimeter level accurate position.
It’s powered by u-blox ZED-F9P module and can be used standalone, or connected with Arduino, Ardupilot / Pixhawk (JST connector), Raspberry Pi, Nvidia Jetson and STM32 Nucleo platforms, as a shield. It can provide up to 10 RTK positions every second.
This board is ideal to make the first steps in RTK.
More details are available in the Specifications and Documentation tabs.
Good to know:
– This product is compatible but doesn’t include multiband GNSS antenna, which is necessary to use the product.
– The module will not give good performance with a standard GNSS antenna, requires a multiband one.
– This product can be used as Base or Rover
– This board is recommended if you want to test u-blox ZED-F9P performance.
– The onboard XBee socket can be used to expand functionality with Plugin accessories (MR/LR radios, Bluetooth, WiFi, Ethernet, Dataloggers, RS232, Canbus, L-Band). Not compatible with high power XBee accessories (XLR radio and 4G NTRIP Master). To have this full compatibility consider simpleRTK2B Pro.
– You can use the Shield for Second Plugin socket to connect 2 plugins at the same time.
– Compatible with Ardusimple plastic case
Specifications
ZED-F9P features- Centimeter level precision
- <1cm with a base station up to 35km
- <1cm with NTRIP up to 35km
- <4cm with SSR corrections
- <1.5m in standalone mode
- <0.9m standalone with SBAS coverage
- Update rate
- Default: 1Hz
- With maximum performance: up to 10Hz
- With reduced performance: up to 20Hz
- Multi band: L1, L2 and E5b support
- Multifrequency and Multiconstellation:
- GPS: L1C/A L2C
- GLONASS: L1OF L2OF
- Galileo: E1-B/C E5b
- BeiDou: B1I B2I
- QZSS: L1C/A L2C
- SBAS: WAAS, EGNOS, MSAS, GAGAN and SouthPAN
- Start-up times:
- First position fix: 25 seconds (cold), 2 seconds (hot)
- First RTK fix: 35 seconds (cold)
- RAW data output in UBX format
- Base and Rover functionality
- Operating temperature Range: -40 to +85deg
- Documentation: RED, RoHS
Documentation
Start here:- Get started with the User Guide
Datasheet- Configuration files
- How to connect your simpleRTK2B to a Raspberry Pi
- How to configure simpleRTK2B as static base station
- How to share your base station with RTK2go NTRIP Caster
- How to visualize GNSS RTK real-time data in Google Earth
- How to log basic data with simpleRTK2B ZED-F9P integrated memory
- simpleRTK2B performance with NTRIP correction services
- How to connect simpleRTK2B series receiver to a NTRIP correction service via PC
- Testing simpleRTK2B accuracy in RTK base-rover configuration
