simpleRTK 4 Optimum

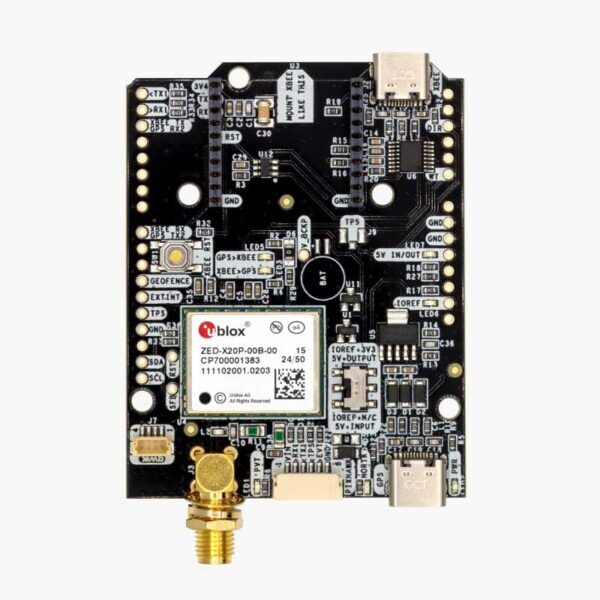

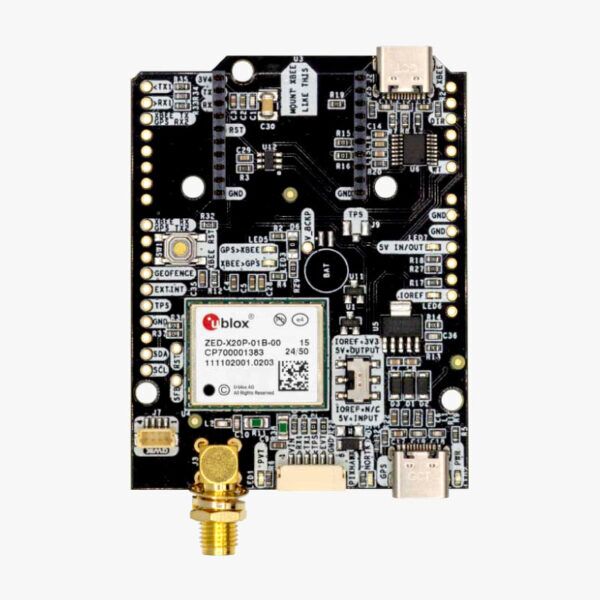

simpleRTK 4 Optimum is a u-blox ZED-X20P evaluation board.

It can be used standalone or connected with Arduino, Ardupilot / Pixhawk (JST connector), Raspberry Pi, Nvidia Jetson and STM32 Nucleo platforms, as a shield. It can provide up to 25 RTK positions every second.

This board is ideal to start developing your own product with RTK technology inside. More details are available in the Specifications and Documentation tabs.

Good to know:
– This product is compatible but doesn’t include multiband GNSS antenna, which is necessary to use the product.
– The module will not give good performance with a standard GNSS antenna, requires a multiband one.
– This product can be used as Base or Rover
– This board is recommended if you want to test u-blox ZED-X20P performance.
– This product is an alternative to u-blox X20P high precision GNSS evaluation kit.
– The onboard XBee socket can be used to expand functionality with Plugin accessories (MR/LR/XLR radios, Bluetooth, WiFi, Ethernet, Dataloggers, RS232, Canbus, L-Band, 4G/3G/2G).
– You can use the Shield for Second Plugin socket to connect 2 plugins at the same time.
– Compatible with Ardusimple plastic case
– This board has the option of mounting a backup battery to speed up the Time to First Fix after a short power down. Note that this will not speed up the Time to First RTK fix, fresh satellite data is needed for that. If you want the board with the onboard V_BCKP battery mounted you can add the Hand Soldering Service to your cart.
