The vision of ArduSimple is to make GNSS RTK technology simple, affordable and accessible to everyone with a series of starter kits, tutorials, engineering services and OEM products.
simpleSSR – Starter Kit incl. 1 year unlimited RTK corrections
SKU: AS-STARTKIT-SSRIP-L1L2
799,00€
This product comes with 2 years worldwide warranty
This product has quantity discounts available:
| Units | Price per unit |
|---|---|
| <50 | 799,00€ |
| >=50 | Contact us for special pricing |
| >500 | Contact us for special pricing |

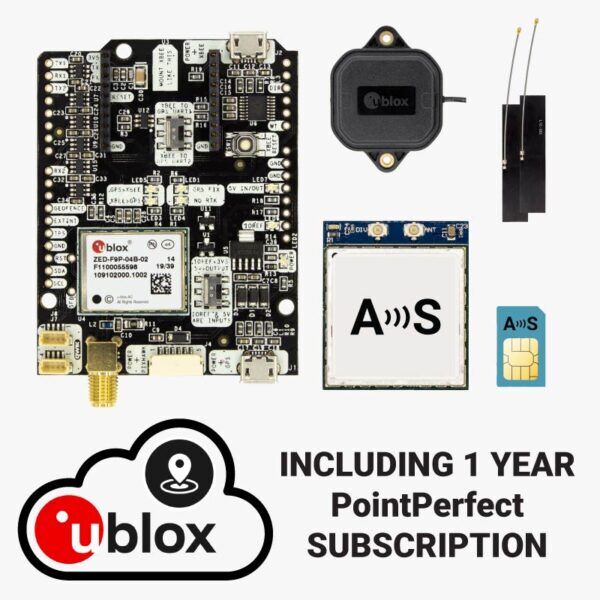

Includes:
– 1 simpleRTK2B-F9P Pro board
– 1 u-blox ANN-MB-00 Antenna for GNSS Dual Band with cable (IP67)
– 4G radio module with NTRIP client including RTK-SSR engine (XBee socket compatible)
– 2x 4G antennas with integrated cable
– 1x SIM card with 1-year subscription
– 1-year subscription to SSR service
With Ardusimple simpleSSR – Basic Starter Kit, you will be able to enjoy plug-and-place centimeter accuracy in Europe and continental North America from any area with cellphone coverage.
Thanks to u-blox F9 RTK engine, Thingstream PointPerfect augmentation service and ArduSimple integration and pre-configuration, just power up, wait 1-2 minutes, and enjoy centimeter precision.
Check the simpleSSR product page for more information or the simpleSSR hookup guide to see how plug and play it is.
Good to know:
– The price includes the hardware, 1 year unlimited data plan, 1 year unlimited PointPerfect augmentation service.
– Service will activate automatically during the first power up or 15 days after delivery, whichever happens first.
– You can use the device without limit for a full calendar year: 365 days @ 24h/day.
– When the date of the license period is close to expire, you will have the possibility to renew it at 365€/year.
– You can also use this device to connect to your favorite NTRIP caster forever.
– u-blox PointPerfect augmentation service coverage in all territory marked in orange and up to 20km from the coastline.
Specifications
4G NTRIP Master features- LTE FDD Cat.4 with dual antenna for Rx Diversity and MIMO
- Compatible with 2G, 3G and 4G networks
- Integrated SIM holder: MicroSIM
- Antenna type: external passive
- Antenna connector (modem side): uFL / IPEX
- Frequency (Europe variant):
- For Europe, but also Middle East & Asia, compatible with:
- 4G Bands (MHz): B1(2100), B3(1800), B7(2600), B8(900), B20(800)
- 3G Bands (MHz): B2(2100), B8(900)
- 2G Bands (MHz): B3(1800), B8(900)
- Frequency (North America variant):
- For USA* & Canada, compatible with 4G and 3G networks.
- 4G Bands (MHz): B2(1900), B4(1700), B5(850), B12/B13 (700)
- 3G Bands (MHz): B2(1900), B5(850)
- * Only compatible with AT&T, T-Mobile and virtual operators working on these networks. Not compatible by default with Verizon SIM cards, contact us in this case.
- Operating temperature Range: -40 to +85deg
- Documentation: RED, RoHS, FCC, IC, PTCRB
- Centimeter level precision
- <1cm with a base station up to 35km
- <1cm with NTRIP up to 35km
- <4cm with SSR corrections
- <1.5m in standalone mode
- <0.9m standalone with SBAS coverage
- Update rate
- Default: 1Hz
- With maximum performance: up to 10Hz
- With reduced performance: up to 20Hz
- Multi band: L1, L2 and E5b support
- Multifrequency and Multiconstellation:
- GPS: L1C/A L2C
- GLONASS: L1OF L2OF
- Galileo: E1-B/C E5b
- BeiDou: B1I B2I
- QZSS: L1C/A L2C
- SBAS: WAAS, EGNOS, MSAS, GAGAN and SouthPAN
- Start-up times:
- First position fix: 25 seconds (cold), 2 seconds (hot)
- First RTK fix: 35 seconds (cold)
- RAW data output in UBX format
- Base and Rover functionality
- Operating temperature Range: -40 to +85deg
- Documentation: RED, RoHS
Documentation
Start here:- Get started with the User Guide
Datasheet- Configuration files
- We didn't find time to create this 3D CAD model, contact us to request it
