The vision of ArduSimple is to make GNSS RTK technology simple, affordable and accessible to everyone with a series of starter kits, tutorials, engineering services and OEM products.
Made in Europe
GPS-RTK2
SKU: AS-OPENHW-GPSRTK2-00
Original price was: 209,00€.199,00€Current price is: 199,00€.
Availability: In stock
This product comes with 2 years worldwide warranty
This product has quantity discounts available:
| Units | Price per unit |
|---|---|
| <50 | 199,00€ |
| >=50 | 190,20€ Click here for bulk orders |
| >500 | Contact us for special pricing |
Includes:

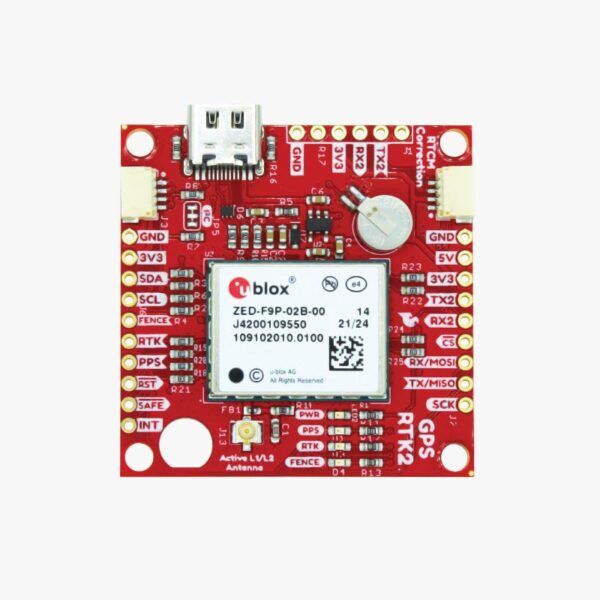

– 1 SparkFun GPS-RTK2 Board (ZED-F9P) (Qwiic) manufactured by ArduSimple.
ArduSimple manufactures the SparkFun GPS-RTK2 Board – ZED-F9P (Qwiic) GNSS receiver following the Open Source Hardware (OSHW) guidelines.
ArduSimple has not any relation with SparkFun, in case of any issues, warranty is provided by ArduSimple.
Check out GPS-RTK2 page to learn more.
Good to know:
– This product is manufactured and sold by ArduSimple, designed by Sparkfun.
– This product is the same as part number GPS-15136.
– You are allowed to sale your version of this board (as is or with modifications)
– This product is compatible but doesn’t include multiband GNSS antenna, which is necessary to use the product. The module will not give good performance with a standard GNSS antenna, requires a multiband one.
Specifications
ZED-F9P features- Centimeter level precision
- <1cm with a base station up to 35km
- <1cm with NTRIP up to 35km
- <4cm with SSR corrections
- <1.5m in standalone mode
- <0.9m standalone with SBAS coverage
- Update rate
- Default: 1Hz
- With maximum performance: up to 10Hz
- With reduced performance: up to 20Hz
- Multi band: L1, L2 and E5b support
- Multifrequency and Multiconstellation:
- GPS: L1C/A L2C
- GLONASS: L1OF L2OF
- Galileo: E1-B/C E5b
- BeiDou: B1I B2I
- QZSS: L1C/A L2C
- SBAS: WAAS, EGNOS, MSAS, GAGAN and SouthPAN
- Start-up times:
- First position fix: 25 seconds (cold), 2 seconds (hot)
- First RTK fix: 35 seconds (cold)
- RAW data output in UBX format
- Base and Rover functionality
- Operating temperature Range: -40 to +85deg
- Documentation: RED, RoHS
Documentation
Start here:
Datasheet- Configuration files
- We didn't find time to create this 3D CAD model, contact us to request it
